Function: New-LocalExchangeConnection – Ensure Your PowerShell Script is Connected to Exchange 2010

December 28th, 2011 11 comments
Download PDF

When writing scripts that execute commands on an Exchange server, for Exchange 2010, it’s important to ensure that you’re running within a session connected to an Exchange server, and that all Exchange cmdlets are available. In Exchange 2007, we could load the Exchange snapins. But 2010 doesn’t use snapins. Some people would say that you can simply load the modules, but loading the modules bypasses RBAC, and is thus, not recommended. Mike Pfeiffer wrote a great article Managing Exchange 2010 with Remote PowerShell that sheds some light. It’s worth a read.

A solution around this is to run a PowerShell script that comes built into Exchange 2010. This makes available the Connect-ExchangeServer cmdlet, which will connect via remote PowerShell to Exchange. We can specify a server, or let the -auto option connect to the best server via autodiscover. New-LocalExchangeConnection is a function I wrote to connect:

function New-LocalExchangeConnection	{
	[cmdletBinding(SupportsShouldProcess = $true)]
	Write-Verbose "Checking for Exchange Management Shell"
	$Sessions = Get-PSSession | Where-Object {$_.ConfigurationName -eq "Microsoft.Exchange"}
	if (!($Sessions)){
		if (Test-Path "$env:ExchangeInstallPath\bin\RemoteExchange.ps1"){
			Write-Verbose "Exchange Management Shell not found - Loading..."
			. "$env:ExchangeInstallPath\bin\RemoteExchange.ps1"
			Write-Verbose "Exchange Management Shell loaded"
			Write-Verbose "Connecting to Exchange server"
			Connect-ExchangeServer -auto
			if (Get-PSSession | Where-Object {$_.ConfigurationName -eq "Microsoft.Exchange"}){
				Write-Verbose "Connected to Exchange Server"
				Write-Host "An error has occurred" -ForegroundColor red
			Write-Warning "Exchange Management Shell is not available on this computer"
		Write-Verbose "Exchange Management Shell already loaded"
} # end function New-LocalExchangeConnection

Calling this within your script will make ensuring that your script is running with access to Exchange cmdlets much simpler.

Function: Set-ModuleStatus – PowerShell Function for Loading and Verifying Modules

December 27th, 2011 12 comments
Download PDF

PowerShell-logo-128x84Often in my PowerShell scripts, I need to either load a specific module, or verify it’s loaded. Manually, of course, we can use Get-Module, Import-Module, etc. But in automation scripts, we need to programtically make sure the module is loaded or load it if it’s not. I wrote this function and it’s worked well for me. introducing Get-ModuleStatus:

function Set-ModuleStatus {
	[CmdletBinding(SupportsShouldProcess = $True)]
	param	(
		[parameter(ValueFromPipeline = $true, ValueFromPipelineByPropertyName = $true, Mandatory = $true, HelpMessage = "No module name specified!")]
		[string] $name
		# Executes once for each pipeline object
		# the $_ variable represents the current input object
		if (!(Get-Module -name "$name")) {
			if (Get-Module -ListAvailable | Where-Object Name -eq "$name") {
				Import-Module -Name "$name"
				# module was imported
				# return $true
			} else {
				# module was not available
				# return $false
		} else {
			# Write-Output "$_ module already imported"
			# return $true
	} # end PROCESS
} # end function Set-ModuleStatus

Call it supplying the module name, such as

Set-ModuleStatus Lync

You can use logic such as

if (Set-ModuleStatus Lync){Write-Host "Lync module is loaded}else{Write-Host "Lync module is NOT loaded" -ForegroundColor red}

Simple and effective. You can also pipe module names to it, such as:

“lync”,”activedirectory” | Set-ModuleStatus


v1.2 – 02-07-2014 –

v1.1 – 09-17-2012 -

v1.0 Get-ModuleStatus.ps1

Categories: PowerShell Tags: ,

Function: New-Password – Creating Passwords with PowerShell

December 26th, 2011 2 comments
Download PDF

PowerShell logoWhen creating new accounts, an admin needs to assign a password. We often then check the box to force a user to change their password when they logon for the first time. Some organizations will use a ‘default’ password for all new accounts. That’s fraught with security implications, and I’ve never recommended it. The downside is that you, as an admin, need to think up a password for each new account. I know how it is – you look around at things on your desk, items on the wall, looking for ideas. Then you have to make sure your super password meets your organizations password requirements, including length and complexity. Well, no more!

Enter New-Password. This function takes one simple input – length. It then spits out a password of said length, using upper and lower case letters, numbers, and punctuation, as well as a phonetic version. If you choose not to use some of the punctuation characters, feel free to just put a ‘#’ in front of that particular line.

function New-Password	{
  Displays a complex password.

  Displays a complex password. Output includes password, and phonetic breakdown of the password.

  Version                 : 1.3
  Wish List               :
  Rights Required         : No special rights required
                          : If script is not signed, ExecutionPolicy of RemoteSigned (recommended) or Unrestricted (not recommended)
                          : If script is signed, ExecutionPolicy of AllSigned (recommended), RemoteSigned,
                            or Unrestricted (not recommended)
  Sched Task Required     : No
  Lync/Skype4B Version    : N/A
  Author/Copyright        : © Pat Richard, Skype for Business MVP - All Rights Reserved
  Email/Blog/Twitter      : @patrichard
  Dedicated Post          :
  Disclaimer              : You running this script means you won't blame me if this breaks your stuff. This script is
                            provided AS IS without warranty of any kind. I disclaim all implied warranties including,
                            without limitation, any implied warranties of merchantability or of fitness for a particular
                            purpose. The entire risk arising out of the use or performance of the sample scripts and
                            documentation remains with you. In no event shall I be liable for any damages whatsoever
                            (including, without limitation, damages for loss of business profits, business interruption,
                            loss of business information, or other pecuniary loss) arising out of the use of or inability
                            to use the script or documentation.
  Acknowledgements        :
  Assumptions             : ExecutionPolicy of AllSigned (recommended), RemoteSigned or Unrestricted (not recommended)
  Limitations             :
  Known issues            : None yet, but I'm sure you'll find some!

Function: New-Password – Creating Passwords with PowerShell
.EXAMPLE New-Password -Length <integer> Description ----------- Creates a password of the defined length .EXAMPLE New-Password -Length <integer> -ExcludeSymbols Description ----------- Creates a password of the defined length, but does not utilize the following characters: !$%^-_:;{}<># &@]~ .INPUTS This function does support pipeline input. #> #Requires -Version 3.0 [CmdletBinding(SupportsShouldProcess = $true)] param( #Defines the length of the desired password [Parameter(ValueFromPipeline = $True, ValueFromPipelineByPropertyName = $True)] [ValidateNotNullOrEmpty()] [ValidatePattern("[0-9]")] [int] $Length = 12, #When specified, only uses alphanumeric characters for the password [Parameter(ValueFromPipeline = $False, ValueFromPipelineByPropertyName = $True)] [switch] $ExcludeSymbols ) PROCESS { $pw = "abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789" if (!$ExcludeSymbols) { $pw += "!$%^-_:;{}<># &@]~" } $password = -join ([Char[]]$pw | Get-Random -count $length) Write-Output "`nPassword: $password`n" ForEach ($character in [char[]]"$password"){ [string]$ThisLetter = $character switch ($ThisLetter) { a {$ThisWord = "alpha"} b {$ThisWord = "bravo"} c {$ThisWord = "charlie"} d {$ThisWord = "delta"} e {$ThisWord = "echo"} f {$ThisWord = "foxtrot"} g {$ThisWord = "golf"} h {$ThisWord = "hotel"} i {$ThisWord = "india"} j {$ThisWord = "juliett"} k {$ThisWord = "kilo"} l {$ThisWord = "lima"} m {$ThisWord = "mike"} n {$ThisWord = "november"} o {$ThisWord = "oscar"} p {$ThisWord = "papa"} q {$ThisWord = "quebec"} r {$ThisWord = "romeo"} s {$ThisWord = "sierra"} t {$ThisWord = "tango"} u {$ThisWord = "uniform"} v {$ThisWord = "victor"} w {$ThisWord = "whiskey"} x {$ThisWord = "xray"} y {$ThisWord = "yankee"} z {$ThisWord = "zulu"} 1 {$ThisWord = "one"} 2 {$ThisWord = "two"} 3 {$ThisWord = "three"} 4 {$ThisWord = "four"} 5 {$ThisWord = "five"} 6 {$ThisWord = "six"} 7 {$ThisWord = "seven"} 8 {$ThisWord = "eight"} 9 {$ThisWord = "nine"} 0 {$ThisWord = "zero"} ! {$ThisWord = "exclamation"} $ {$ThisWord = "dollar"} % {$ThisWord = "percent"} ^ {$ThisWord = "carat"} - {$ThisWord = "hyphen"} _ {$ThisWord = "underscore"} : {$ThisWord = "colon"} `; {$ThisWord = "semicolon"} `{ {$ThisWord = "left-brace"} `} {$ThisWord = "right-brace"} `/ {$ThisWord = "backslash"} `< {$ThisWord = "less-than"} `> {$ThisWord = "greater-than"} `# {$ThisWord = "pound"} `& {$ThisWord = "ampersand"} `@ {$ThisWord = "at"} `] {$ThisWord = "right-bracket"} `~ {$ThisWord = "tilde"} default {$ThisWord = "space"} } if ($ThisLetter -cmatch $ThisLetter.ToUpper()){ $ThisWord = $ThisWord.ToUpper() } $phonetic = $phonetic+" " +$ThisWord } $phonetic = $phonetic.trim() Write-Output "Phonetic: $phonetic" "Password: $password`nPhonetic: $phonetic" | clip Write-Output "`n`nThis information has been sent to the clipboard" } END{ Remove-Variable ThisWord Remove-Variable ThisLetter Remove-Variable Password Remove-Variable Phonetic Remove-Variable Pw } } # end function New-Password

Now, stick that function in your PowerShell profile. Each time you need a new password, use

New-Password -Length [number]

such as

New-Password -Length 12

And you now have a password to use.

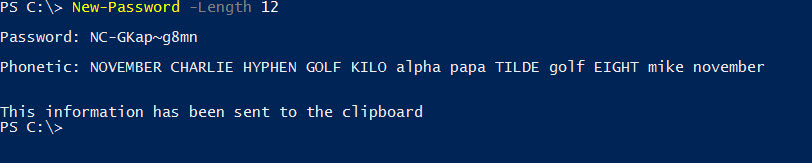

12 character password







You can also specify -ExcludeSymbols to return only an alphanumeric password, bypassing the added complexity of using non-alphanumeric symbols.

New-Password -Length 12 -ExcludeSymbols

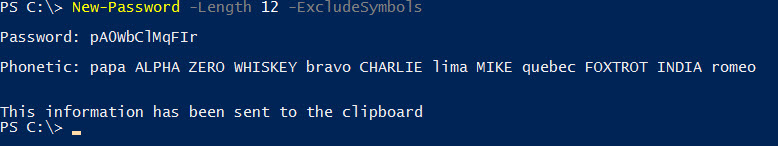

12 character alphanumeric password

Functions: Get-LocalAdminGroupMembership and Set-LocalAdminGroupMembership – Local Admin Group Membership on Remote Machines

December 22nd, 2011 No comments
Download PDF

PowerShell-logo-128x84While writing some PowerShell scripts to automate the installation of Exchange on over 100 servers, I needed to set and then verify that a group (in this case, “Exchange Trusted Subsystem”) was a member of the local admins group on some remote servers.

We start with Get-LocalAdminGroupMembership. This function merely checks the local admins group on a remote server to see if the group to be added is already a member. If it is, it returns $true, if not, $false. We need to pass it two variables: $ComputerName, and $Member. We don’t need to run this function. It’s called from the second function.

function Get-LocalAdminGroupMembership	{
		[Parameter(Position=0, ValueFromPipeline=$true, ValueFromPipelineByPropertyName=$true)]
		$ComputerNameÂ&nbsp;= &quot;.&quot;,
		[Parameter(Position=1, ValueFromPipeline=$true, ValueFromPipelineByPropertyName=$true)]
	if($ComputerNameÂ&nbsp;-eqÂ&nbsp;&#039;.&#039;){$ComputerNameÂ&nbsp;= (get-WmiObjectÂ&nbsp;win32_computersystem).Name}
	$computer = [ADSI](&quot;WinNT://&quot; + $ComputerNameÂ&nbsp;+ &quot;,computer&quot;)
	$Group = $computer.psbase.children.find(&quot;Administrators&quot;)
	$members= $Group.psbase.invoke(&quot;Members&quot;) | % {$_.GetType().InvokeMember(&quot;Name&quot;, &#039;GetProperty&#039;, $null, $_, $null)}
	if ($members -matchÂ&nbsp;$member){return $true}else{return $false}
} # end function Get-LocalAdminGroupMembership


The second function does all the heavy lifting.

function Set-LocalAdminGroupMembershipÂ&nbsp;{
		[Parameter(Position=0, Mandatory=$false, ValueFromPipeline=$true, ValueFromPipelineByPropertyName=$true)]
		[string]$ComputerNameÂ&nbsp;= &#039;.&#039;,
		[Parameter(Position=1, Mandatory=$true, ValueFromPipeline=$true, ValueFromPipelineByPropertyName=$true)]
		[Parameter(Position=2, Mandatory=$false, ValueFromPipeline=$true, ValueFromPipelineByPropertyName=$true)]
		[string]$Domain = $env:USERDNSDOMAIN

		if (!(Get-LocalAdminGroupMembershipÂ&nbsp;-ComputerNameÂ&nbsp;&quot;$ComputerName&quot; -MemberÂ&nbsp;&quot;$Member&quot;)){
			if($ComputerNameÂ&nbsp;-eqÂ&nbsp;&#039;.&#039;){$ComputerNameÂ&nbsp;= $env:ComputerName.ToUpper()}

  			$adsiÂ&nbsp;= [ADSI]&quot;WinNT://$ComputerName/administrators,group&quot;
	  		Write-Host &quot;Not connected to a domain.&quot; -ForegroundColorÂ&nbsp;&quot;red&quot;
		} else {
			Write-Host &quot;`&quot;$Account`&quot; is already a local admin on $ComputerName&quot; -ForegroundColorÂ&nbsp;yellow
		Get-LocalAdminGroupMembershipÂ&nbsp;-ComputerComputerÂ&nbsp;&quot;$ComputerName&quot; -MemberÂ&nbsp;&quot;$Member&quot;
	}# Process
} # end function Set-LocalAdminGroupMembership

We call Set-LocalAdminGroupMembership and pass it the same parameters, $ComputerName and $Member

Set-LocalAdminGroupMembershipÂ&nbsp;-ComputerNameÂ&nbsp;mycomputerÂ&nbsp;-Member &quot;Exchange Trusted Subsystem&quot;

The function will add the group to the local admins group, and then do a Get-LocalAdminGroupMembership for that same group and dump the results to the screen.

Function: New-Pause – Pausing PowerShell Scripts

December 21st, 2011 No comments
Download PDF

Yesterday, I wrote about a sleep function to cause a predetermined delay in a script. Today, I give you a short function, New-Pause. New-Pause stops a script and waits for the user to press a key before continuing.

function New-Pause {
 Write-Host &quot;Press any key to continue&quot; -ForegroundColor green
 $x = $host.UI.RawUI.ReadKey(&quot;NoEcho,IncludeKeyDown&quot;)
} # end function New-Pause

Call the function using



Once any key is pressed, your script can continue.

Categories: PowerShell Tags: ,

Function: New-Sleep – When You Need a Delay

December 20th, 2011 6 comments
Download PDF

On a recent project, I needed some PowerShell scripts to wait for a few seconds just to ensure that some other processes were finished and I wasn’t issuing too many commands to some Exchange servers too quickly. I came up with this little function:

function New-Sleep {
		[parameter(ValueFromPipeline = $true, ValueFromPipelineByPropertyName = $true, Mandatory = $true, HelpMessage = "No time specified")]
	for ($i=1; $i -lt $s; $i++) {
	Write-Progress -Activity "Waiting $s seconds..." -PercentComplete (100/$s*$i) -CurrentOperation "$TimeLeft seconds left ($i elapsed)" -Status "Please wait"
	Start-Sleep -Seconds 1
	Write-Progress -Completed $true -Status "Please wait"
} # end function New-Sleep

Call the function like this:

New-Sleep -s 60

Where the value of $s is the number of seconds you want to sleep. The display tells you how long your sleeping for, how much time is left, and how much time has elapsed.



Download the function below.


v1.0 New-Sleep.ps1

Categories: PowerShell Tags: ,
